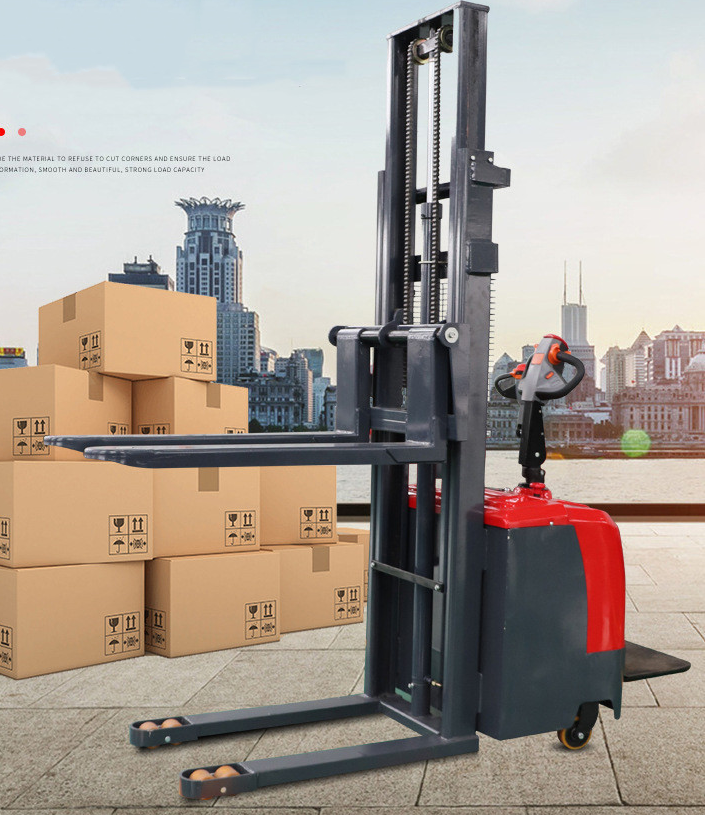

Electric stacker is an industrial handling vehicle powered by electric motors and storage batteries.
Including: all-electric stacker, semi-electric stacker, forward-moving all-electric stacker, walking counterbalanced stacker.
The maximum carrying capacity is 1 ton, 1.5t, 2T
The maximum ground clearance: 1.6m, 2m, 2.5m, 3m.
Color, ground clearance, body size, and other functions can be customizedOur all-electric lift trucks have an ultra-small turning radius that solves the problem of expensive, narrow passages that large forklifts are not allowed to pass. Mainly used in various factories, warehouses, logistics storage and loading and unloading, short-distance stacking and handling.
With strength, versatility & reliability in mind, our range has been chosen to satisfy the demands of handling and warehousing professionals.
BATTERY TYPE | Charging | Charging | Charging | Charging | Charging | |
Item | Unit | BDD2000 | BDD2000 | BDD2000 | BDD2000 | BDD2000 |
Capacity | kg | 2000 | 2000 | 2000 | 2000 | 2000 |
Certification | CE | CE | CE | CE | CE | |
Max. lifting heihgt | mm | 1600 | 2000 | 2500 | 3000 | 3500 |
Min. lifting heihgt | mm | 90 | 90 | 90 | 90 | 90 |
Fork length | mm | 1200 | 1200 | 1200 | 1200 | 1200 |
Fork Width | mm | 160 | 160 | 160 | 160 | 160 |
Overall width | mm | 960 | 960 | 960 | 960 | 960 |
Overall Height | mm | 2020 | 1580 | 1780 | 2100 | 2350 |
Overall length | mm | 1800 | 1800 | 1800 | 1800 | 1800 |
